Step 8 - Use the application
-

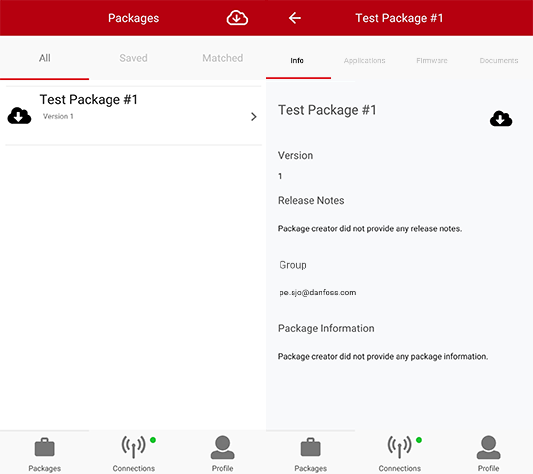

Click on Packages in the Navigation Bar. Select the
Matched tab. Now, only the packages matching the
connected system will be displayed. Press Test Package #1
to open it.
-

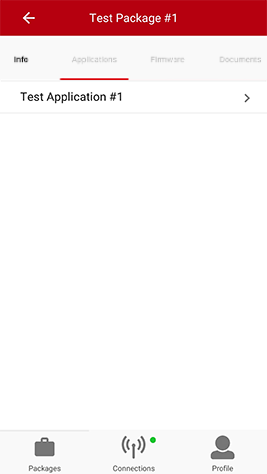

Press the Applications tab to see the available
applications in the package. Click Test Application #1 to
open the Service Application we created earlier.

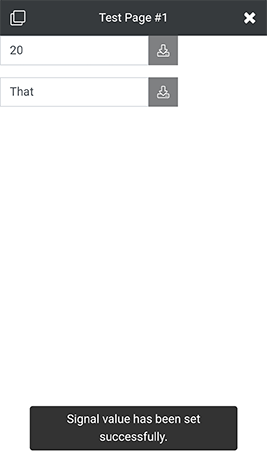

The Service Page is now displayed. The upper value can be changed by clicking the value, and entering a new value. Then press the download icon to the right to download the value to the ECU. The lower value is logged continuously and the text matching the logged value is displayed.
-
Press the X in the upper right corner to close the

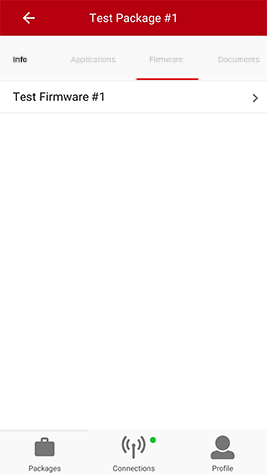

application. Press the Firmware tab to view the available
firmware. Click Test Firmware #1 to open it.
-

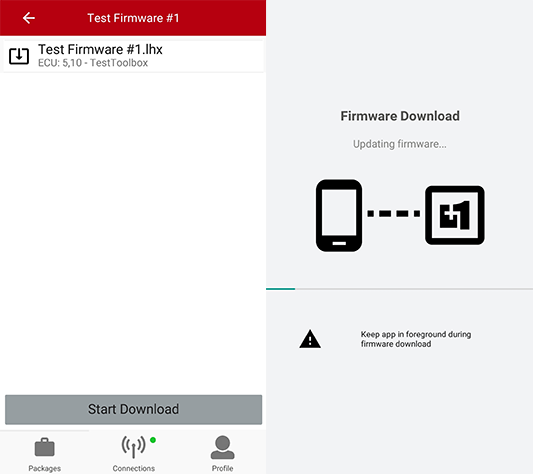

Press Start Download to update the firmware for the
ECU.
Note: Make sure to keep the app in the foreground while downloading firmware to make sure that the download is successful.
